Real-Time Visualization
Watch your Modbus registers update live on an interactive graph. Identify transients and trends as they happen, with automatic or sliding-window axis scaling.
ModbusScope
Visual Modbus Data Logging
Open-source desktop application for real-time logging and visualization of Modbus TCP and RTU data. Built for industrial engineers, energy professionals, and embedded developers.
Windows
Linux
Open Source
GPLv3

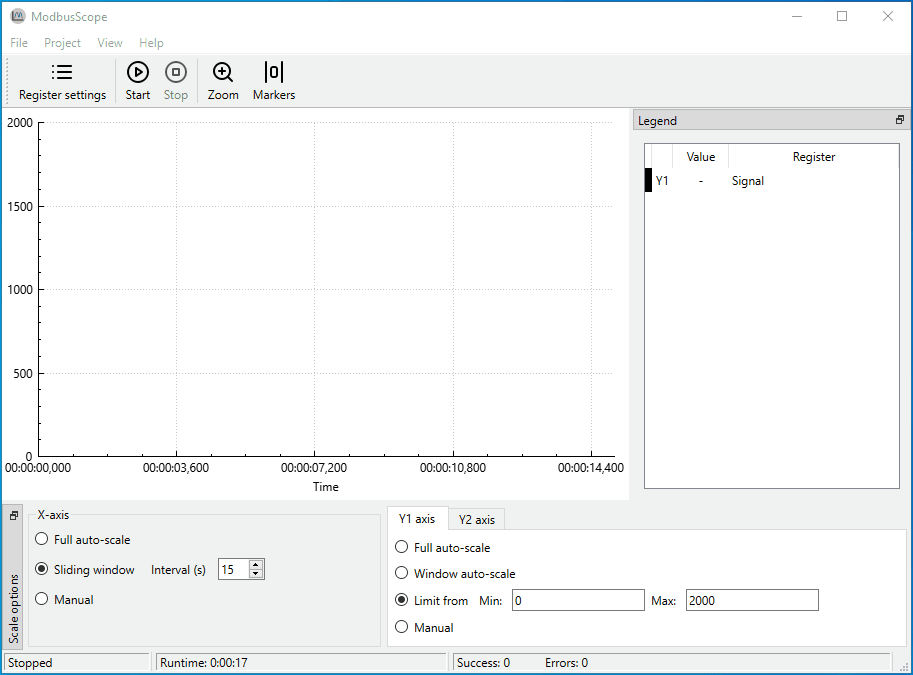

See It In Action
Real-time logging and interactive graph analysis, all in one window.
Everything You Need
A complete toolset for Modbus data acquisition and analysis.
Modbus TCP and RTU
Connect over Ethernet via Modbus TCP or directly to serial hardware via Modbus RTU. Configure multiple connections with independent settings for each.
Multiple Devices
Poll multiple Modbus slaves simultaneously. Mix slave IDs and connection types in a single session. Ideal for comparing sensors across a bus or network.
Custom Expressions
Write user-defined formulas to combine, scale, or convert register values. Apply unit conversions, compute power from voltage and current, or implement any derived quantity.
Statistical Analysis
Drag markers to bracket a time range and instantly read min, max, average, median, and slope statistics. Zoom with the scroll wheel to focus on any interval.
CSV Export
Export the full logged dataset to CSV for post-processing in Excel, Python, MATLAB, or any analysis tool. All register channels are included with timestamps.
All Register Types
Supports coils, discrete inputs, input registers, and holding registers, covering the full Modbus object model. Read and log any combination in a single session.
Protocol and Register Support
TCP
Modbus TCP/IP
RTU
Modbus RTU (Serial)
0x
Coils
1x
Discrete Inputs
3x
Input Registers
4x
Holding Registers
Ready to Get Started?
Download ModbusScope and start visualizing your Modbus data in minutes.
Windows and Linux · GPLv3 · View source on GitHub
